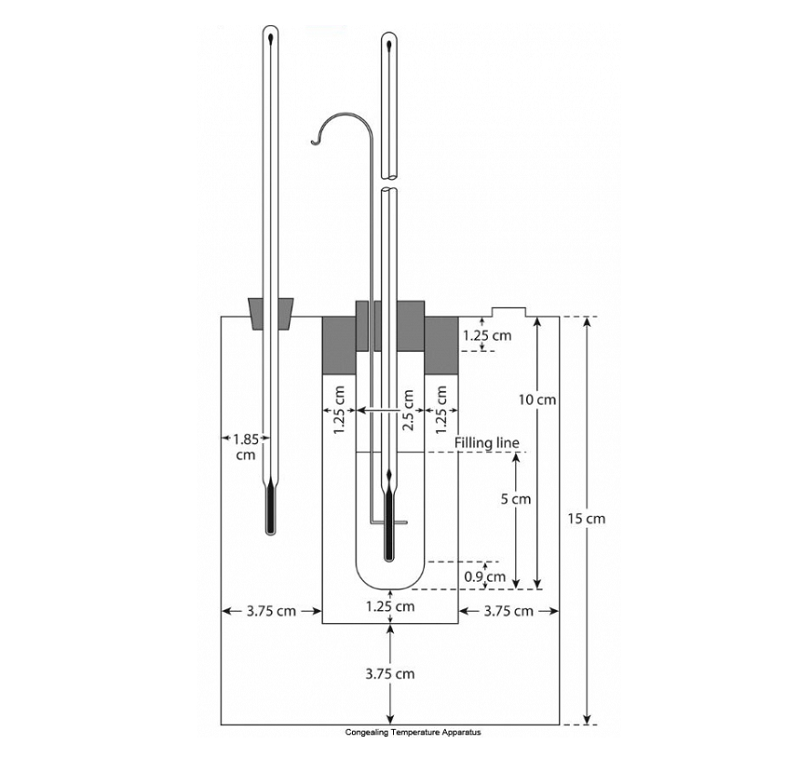

Congealing Temperature Distillation Apparatus, #11 center, #5 side neck, #3 stopper
Inner test tube:
25 mm O.D. and 150 mm long.
Outer test tube (jacket):
40 mm O.D. and 160 mm long, housing the inner tube
Rubber stopper (for inner tube): seals the inner test tube and has two holes: One hole for inserting the thermometer and One hole for passing the stirrer stem
Stirrer: a glass rod with a loop at one end,18 mm in diameter and oriented at right angles to the stirrer (glass rod).
Thermometer:
Thermometer required is NOT included with this set up. SOLD SEPARATELY.
The following Thermometer is required.
1. 30°C graduated in 0.1 division, calibrated (full immersion).
2. -20°C to +150°C, ASTM EI serves 89°C.
